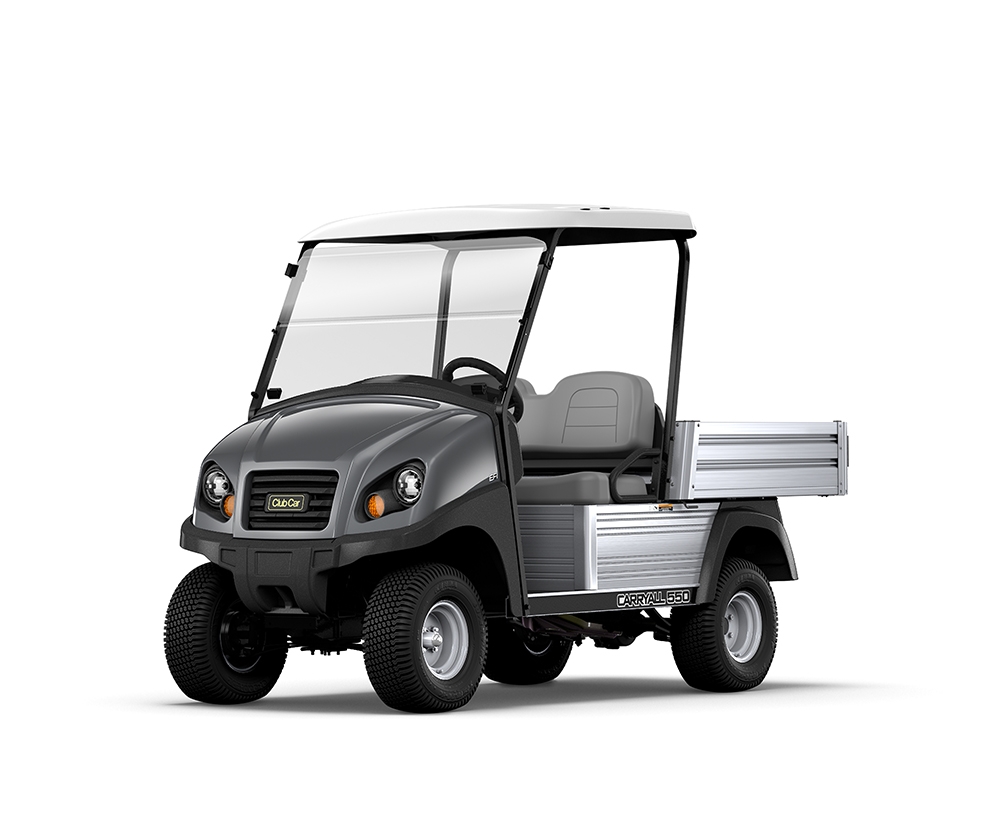

The Carryall 550 Turf boasts 15.2 cm of ground clearance with 680.3 kg of hauling capability, making it easy to traverse any area of the course where maintenance is required.
Electric
3.7 hp (2.7 kW) rated, Peak 20 hp (14.9 kW))
Canopy front seats only
8-27 km/h
Folding windshield
DeltaQ QuiQ (1 kW high frequency)
Cargo box capacity:Â 453.6kg
Towing capacity:Â 680.3kg
| Engine | 48-volt DC |
| Horsepower | 3.7 hp (2.7 kW) rated, Peak 20 hp (14.9 kW) |
| Battery | Â (6) – 8-volt flood lead acid |
| Charger | DeltaQ QuiQ (1 kW high frequency) |
| Speed | 8-27 km/h |
| Steering | Self-adjusting rack & pinion |
| Front Suspension | Independent Leaf Spring w/dual Hydraulic Shocks |
| Turning Radius | 321.3 cm |
| Brakes | 4 Wheel Mechanical Drum. |
| Park Brake | Foot operated, Multi-lock |
| LxH | 299.7 x 130 cm |
| Bed (LxWxH) | 11.2 x 120.6 x 26.6 cm |
| Wheelbase | 198.3 cm |
| Ground Clearance | 15.2 cm |
| Tyres | 22 x 10 – 10, 6-ply |
| Curb Weight | 635.9 kg |
| Bed Load Capacity | 453.6 kg |
| Towing Capacity | 680.3 kg |
