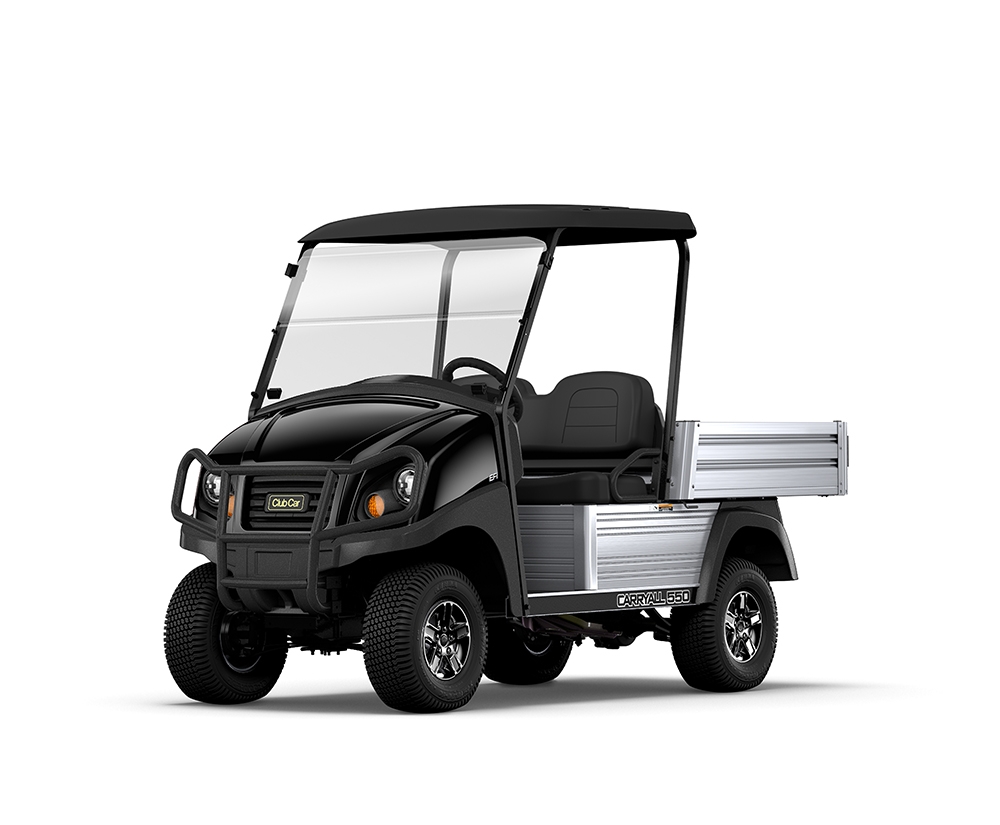

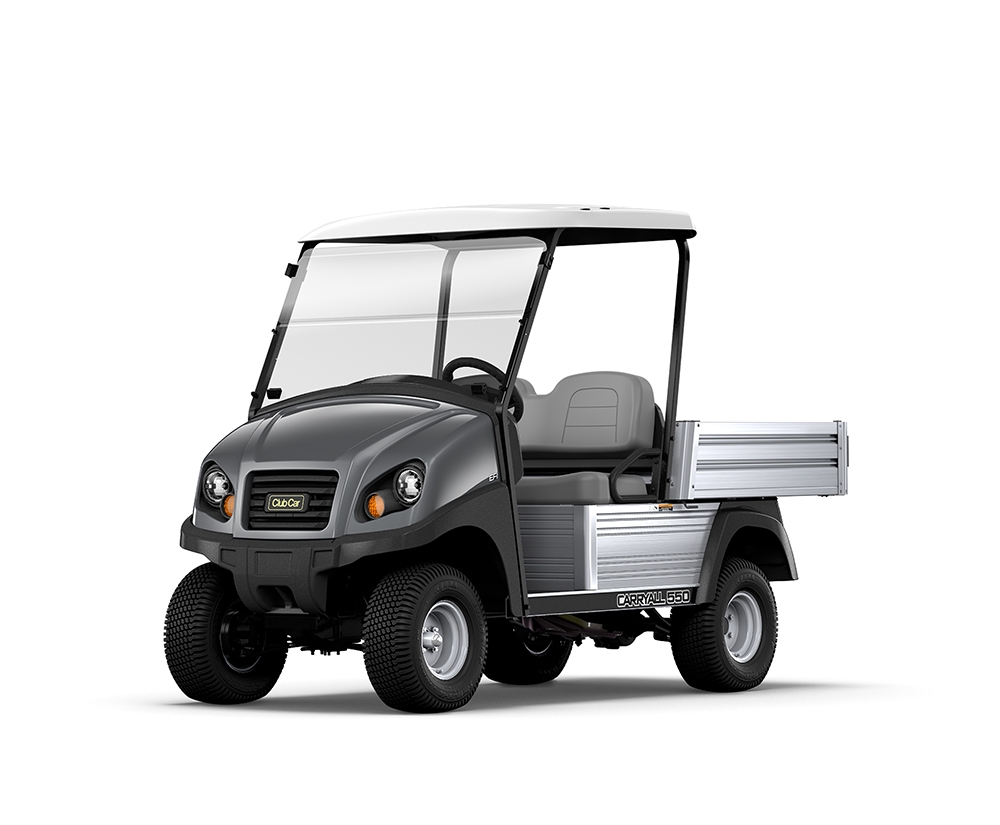

The Carryall 550 Turf boasts 15.2 cm of ground clearance with 680.3 kg of hauling capability, making it easy to traverse any area of the course where maintenance is required.
alt=""
Petrol
alt=""
14.0 hp (10.3 kW) rated @ 3,600 RPM per SAE J1940
alt=""
Canopy front seats only
alt=""
24-27 km/h
alt=""

Folding windshield

alt=""

17.4 L

alt=""

Cargo box capacity: 453.6kg

alt=""

Towing capacity: 680.3kg

Engine 404cc, Subaru 4-cycle, Single Cylinder, Overhead Cam, Air Cooled
Horsepower 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940
Battery 12V, 500, 105 min reserve
Fuel Tank Capacity  17.4 L
Speed  24-27 km/h

Steering Self-adjusting rack & pinion
Front Suspension Independent Leaf Spring w/dual Hydraulic Shocks
Turning Radius 321.3 cm

Brakes 4 Wheel Mechanical Drum.
Park Brake Foot operated, Multi-lock

LxWxH 299.7 x 120.6 x 130 cm
Bed (LxWxH) 112.2 x 120.6 x 26.6 cm
Wheelbase 198.3 cm
Ground Clearance 15.2 cm
Tyres 20 x 10 – 10, 6 ply
Curb Weight 427.2 kg
Bed Load Capacity 453.6 kg
Towing Capacity 680.3 kg
